48kW 72kW Battery Test System High Precision For Battery Modules

Product Details
Place of Origin: China
Brand Name: ANE
Model Number: BTLA-MTS048- 100L-08/BTLA-MTS072- 100L-12
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Exwork: 2,0000~44,000 USD
Packaging Details: Wooden Box
Delivery Time: 60 Work days
Payment Terms: T/T
Supply Ability: 60 Sets Per Month

Detail Information

Place of Origin China Brand Name ANE
Model Number BTLA-MTS048- 100L-08/BTLA-MTS072- 100L-12 Voltage Range: 2.5Vdc~100Vdc/10Vdc~450Vdc
Current Accuracy: 0.1%F.S/0.05%F.S Voltage Accuracy: 0.1%F.S/0.05%F.S
Test Item 1: Charge-discharge Characteristic Test Test Item 2: Battery Capacity Loss Test
Test Item 3: Cycle Life Test Test Item 4: Charge Retention And Recovery Capability Test
Test Item 5: Capacity And Energy Test Test Item 6: Battery Energy Efficiency Test
Test Item 7: Power And Internal Resistance Test Test Item 8: Overcharge, Overdischarge, Short-circuit Withstand Test

Product Description

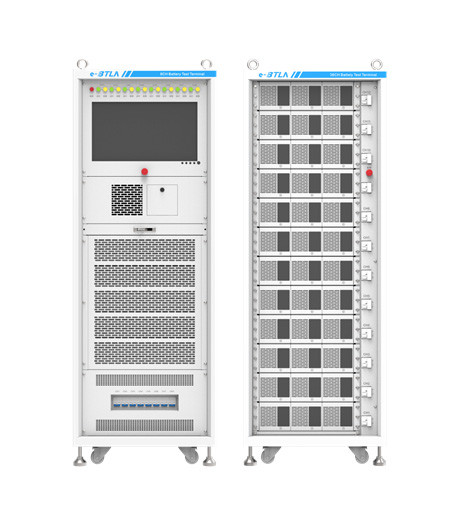

48kW 72kW High Precision Battery Module Test System

Product introduction

ANE battery module test system is a professional test equipment specially developed for battery modules. It can realize the performance test of battery modules and support a variety of working modes, such as constant current, constant voltage, constant current to constant voltage and constant voltage to constant current. This series of products adopts independent multi-channel design architecture, which can simultaneously support multiple groups of different characteristics of battery modules for testing, simple operation, energy saving and high efficiency.

The series of products adopt full digital design, to ensure the accuracy and timeliness of the test process; Integrated high frequency isolation to ensure the safety of battery testing; At the same time, the upper computer software can communicate with BMS and external devices through CAN, RS485, LAN and other interfaces, flexible editing of various work steps, suitable for a variety of test scenarios.


Test Item
Charge-discharge characteristic test Battery capacity loss test Cycle life test Charge retention and recovery capability test
Capacity and energy test Battery energy efficiency test Power and internal resistance test Overcharge, overdischarge, short-circuit withstand test
Product model









Number of channels 8 12 8 12
DC side parameter
Rated power 48kW 72kW 48kW 72kW
Rated voltage 60Vdc 100Vdc
Current range 100A/Channel 60A/Channel
Voltage range 2.5Vdc~100Vdc 10Vdc~450Vdc
Current accuracy 0.1%F.S/0.05%F.S
Voltage accuracy 0.1%F.S/0.05%F.S
AC side parameter
Wiring system Three phase five wire system
Rated voltage 380Vac
Voltage range 380Vac±15%
Frequency range 50/60Hz±5Hz
PF 0.99
THDi ≤5%
Basic characteristic
Peak efficiency ≥90%
Forward and backward switching time ≤10ms
Island protection Support
Protective characteristic Multiple safety protection, AC/DC over and under voltage protection, over current protection, short circuit protection, DC back connection protection, AC phase sequence protection, over temperature protection, fan abnormal detection, etc.
Cooling mode Intelligent forced air cooling
Noise ≤75dB
Operating temperature range -20℃~+45℃
Protection class IP32
Relative humidity ≤95%RH,Non-condensation
Altitude 3000m
Communication mode CAN,RS485,LAN

Overall dimension


Weight 200kg 250kg 200kg 250kg

* Due to the continuous improvement of product technology, subject to change without prior notice. All performance and parameters are subject to the latest confirmation of our technical department.
