90kW EV Battery Test System High Precision For New Electric Vehicles

Product Details
Place of Origin: China
Brand Name: ANE
Model Number: BTLA-ATS090-250H-A
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Exwork: 2,0000~44,000 USD
Packaging Details: Wooden Box
Delivery Time: 60 Work days
Payment Terms: T/T
Supply Ability: 60 Sets Per Month

Detail Information

Place of Origin China Brand Name ANE
Model Number BTLA-ATS090-250H-A Test Item 1: Battery Capacity Detection
Test Item 2: Battery Voltage Consistency Check Test Item 3: DC Internal Resistance Detection
Test Item 4: Battery System Temperature Detection Test Item 5: Battery Charging Port Temperature Detection
Test Item 6: SOC Error Detection Test Item 7: Insulation Detection
Test Item 8: Current And Voltage Error Detection Test Item 9: Vehicle DC Circuit Contactor Adhesion Detection

Product Description

90kW High Precision New energy vehicle EV battery test system

Product introduction

ANE battery test system for electric vehicles is an automatic test solution for on-board power batteries. It can test and verify the fault and safety of the on-board power battery to ensure the reliable performance and stable function of the battery. With its own touch screen, the operation procedure is simple and quick, and the test results can be sent to the user's mobile phone. Using the design architecture of energy feedback, the electric energy generated in the process of battery discharge is returned to the mains or directly transferred to the battery that needs to be charged, reflecting the design concept of energy saving and environmental protection.

The test system has seamless charging and discharging switching function, and adopts full digital design to ensure the accuracy and timeliness of control, so that the output is stable and the response is rapid. Can monitor the test data in real time, and can edit a variety of work steps, flexible, convenient and fast.



Test Item

Battery capacity detection Battery voltage consistency check DC internal resistance detection
Battery system temperature detection Battery charging port temperature detection SOC error detection
Insulation detection Current and voltage error detection Vehicle DC circuit contactor adhesion detection

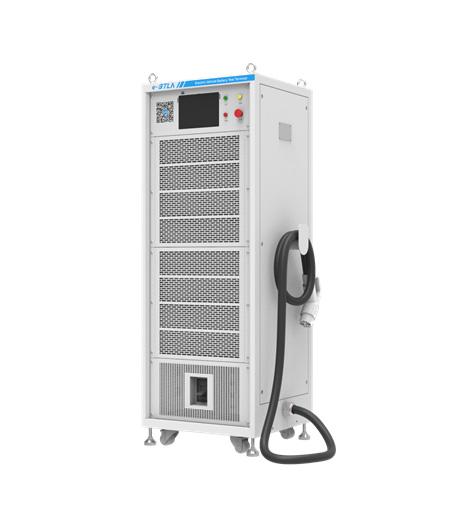

90kW EV Battery Test System High Precision For New Electric Vehicles 0




Product model

Number of channels 1
DC side parameter
Rated voltage 300Vdc
Rated power 90kW
Current range ±250A/Channel
Current accuracy 0.05% F.S
Voltage range 50Vdc~950Vdc
Voltage accuracy 0.05% F.S
AC side parameter
Wiring system Three phase five wire system
Rated voltage 380Vac
Voltage range 380Vac±15%
Frequency range 50/60Hz±5Hz
PF 0.99
THDi ≤5%
Basic characteristic
Peak efficiency ≥90%
Forward and backward switching time ≤10ms
Island protection Possess
Protective characteristic Multiple safety protection, AC/DC over and under voltage protection, over current protection, short circuit protection, DC back connection protection, AC phase sequence protection, over temperature protection, fan abnormal detection, etc.
Cooling mode Intelligent forced air cooling
Noise ≤75dB
Operating temperature range -20℃~+45℃
Protection class IP32
Relative humidity ≤95%RH,Non-condensation
Altitude 3000m
Communication mode Charging connector, 4G
LCD Possess
Overall dimension W*H*D 0.65*1.8*0.6m
Weight 350kg

 * Due to the continuous improvement of product technology, subject to change without prior notice. All performance and parameters are subject to the latest confirmation of our technical department.
