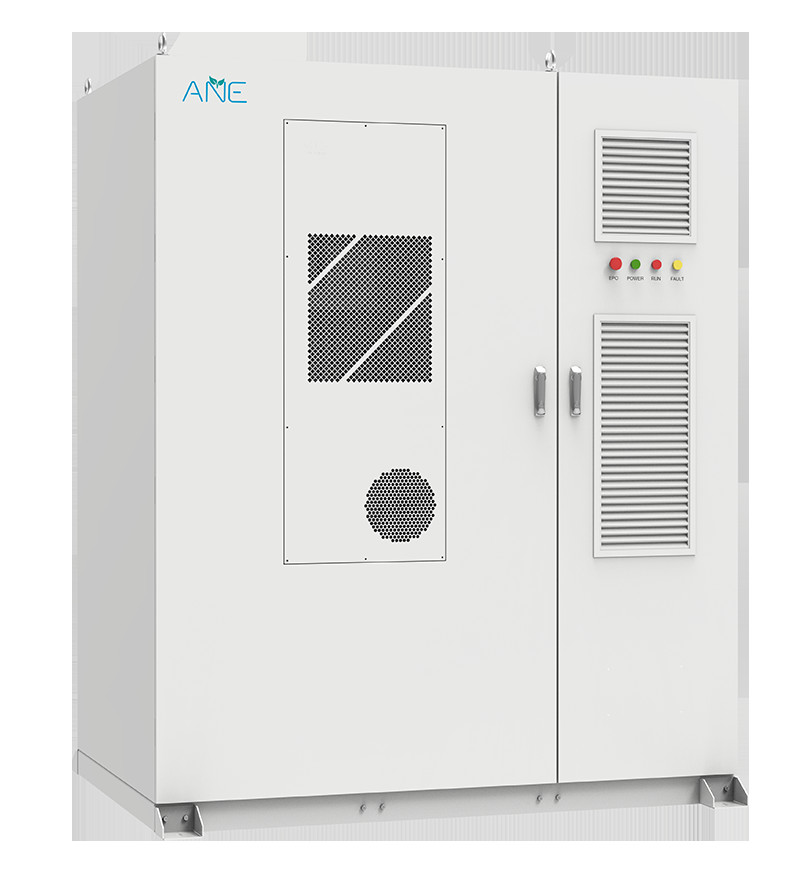

Microgrid Energy Storage Solution Photovoltaic All-in-One Integrated
Product Details
| Place of Origin: | China |
| Brand Name: | ANE |
| Certification: | CE |
| Model Number: | DH200F |
Payment & Shipping Terms
| Minimum Order Quantity: | 1 |
| Price: | 50,000~100,000 USD |
| Packaging Details: | Wooden Box |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T, |
| Supply Ability: | 200 per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | ANE |
|---|---|---|---|
| Certification | CE | Model Number | DH200F |
| PCS Power: | 100 KW | Battery System: | 215 KWh |
| AC Nominal Voltage: | 400V | Nominal Frequency: | 50Hz |
| AC Maximum Current: | 158A | Battery Voltage Range: | 672-864V |
| Nominal Current: | 140A(0.5C) | MPPT Voltage Range: | 200-670V |
| MPPT Channels: | Up To Three | ||
Product Description

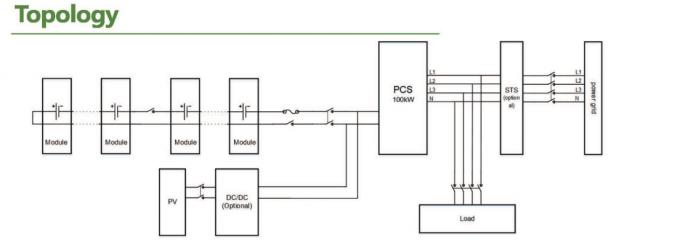

100 kW PCS + 215 kWh Battery All-in-One Integrated Energy Storage System
All-in-One integrated system design inside the Cabinet to fulill Commercial & Industrial scenarios.
HIGHTLIGHTS
• Overall Solar+Storage Solution
• Convenient Ouldoor Setup
• All in One Design Concept
• Allow Flexible System Design
• High-level Safety Design
• Capacity Extenable to MegaWatts
| DH200F (Battery Cabinet) | |
| BATTERY PARAMETERS | |
| Cell Capacity | 280Ah |
| Battery Voltage Range | 672-864V |
| Nominal Current | 140A(0.5C) |
| System Storage Power | 215kWh |
| AC PARAMETERS (ON-GRID) | |
| Nominal Power | 100kW |
| AC Nominal Voltage | 400V |
| Wiring | 3P4L+PE |
| Nominal Frequency | 50Hz |
| AC Maximum Current | 158A |
| AC PARAMETERS (OFF-GRID) | |
| Nominal Power | 100kW |
| AC Nominal Voltagg | 400V |
| Wiring | 3P4L+PE |
| Nominal Frequency | 50Hz |
| AC Maximum Current | 158A |
| Unbalanced Load Capadty | 100% |
| PHOTOVOLTAIC INPUT | |
| MPPT Voltage Range | 200-670V |
| MPPT channels | Up to three |
| Input Power | Single channel 50kW |
| SYSTEM SPECIFICATIONS | |
| Dimensions (W*D*H) | 1.85m*1.2m*2.25m |
| Weight (Kg) | ≈≈≥3300kg |
| System Round-trip Efficiency | 91%(TBD) |
| Operation Temperature | -20-55'℃ |
| Operation Humidity | 0-95% |
| Protection Level | IP55 |
| Anti-corrosion Level | C4 |
| Noise Level | ≤75dB |
| Altitude | ≤3000m |
| Cooling System | Air-conditioning, Fan Coollng |
| Communlcation | Ethernet/RS485/CAN/USB |
| Certification | CE/CQC |
