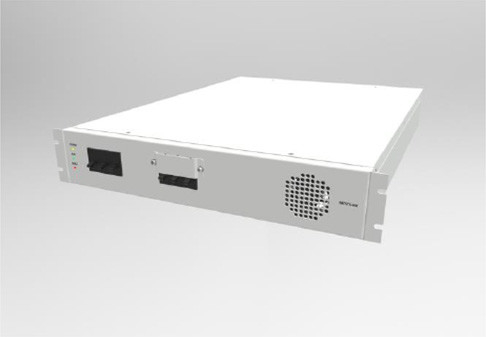

60KW STS Static Transfer Switch Grid Connected Off Grid STS Power Switch
Product Details
| Place of Origin: | China |
| Brand Name: | SINY |
| Model Number: | NESTS-60KR |
Payment & Shipping Terms
| Minimum Order Quantity: | 1 |
| Price: | Exwork: 2,000~4,000 USD |
| Packaging Details: | Carton |
| Delivery Time: | 45 Work days |
| Payment Terms: | T/T, |
| Supply Ability: | 200 Per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | SINY |
|---|---|---|---|
| Model Number | NESTS-60KR | Rated Power: | 60kW |
| Rated Grid Voltage: | 380V/400V | Maximum Current: | 100A |
| Long Term Overload Capacity: | 110% | Rated Frequency: | 50Hz/60Hz |
| Switching Time Between On-grid And Off-grid: | Transfer From On-grid To Off-grid≤20ms; Off-grid To Grid-connected 0ms | Size（W*H*D,mm）: | 435*90*600 |
Product Description
60 KW STS Grid-connected and Off-grid Switching Device for Energy Storage System
The NESTS grid-connected and off-grid switching device can realize the fast and automatic switching of the energy storage system in the grid-connected and off-grid operating states, which is suitable for the application scenarios with power guarantee requirements.
Product features
- Modular design, suitable for NESI series energy storage converter /SINY series optical storage integrated machine.
- It can realize fast switching between the grid-connected and off-grid state within 20ms, and can effectively protect important information loads such as servers.
- Cooperate with EMS and PCS to realize automatic operation of energy storage station without duty.
- Each module is only 2U in height, small in size and high in power.
- Product specification
| 型号 | NESTS-60KR | |||||
| Rated power | 60kW | |||||
| Rated grid voltage | 380V/400V | |||||
| Input voltage range | -15%~+15% | |||||
| Output voltage range | -15%~+15% | |||||
| Maximum current | 100A | |||||
| Long term overload capacity | 110% | |||||
| Rated frequency | 50Hz/60Hz | |||||
| Switching time between on-grid and off-grid |
Transfer from on-grid to off-grid≤20ms; Off-grid to grid-connected 0ms |
|||||
| Maximum efficiency of the machine | 99.5% | |||||
| Cooling way | Forced air cooling | |||||
| Installation | Rack | |||||
| Noise | 45dB | |||||
| Temperature range | -25℃~55℃(Derating above 45 ° C) | |||||
| Protection grade | IP20 | |||||
| Humidity range | 0~95% | |||||
| Communication methods | RS485,CAN | |||||
| Size(W*H*D,mm) | ||||||
