60kW Microgrid Bidirectional AC DC Converter Module For Energy storage System
| Place of Origin: | China |
| Brand Name: | ANE |
| Model Number: | PMA060-A011-H |
| Minimum Order Quantity: | 10 |
| Price: | FOB: 2,000 USD~7,000 USD |
| Packaging Details: | Wooden box |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20000 Per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | ANE |
|---|---|---|---|
| Model Number | PMA060-A011-H | Rated Power: | 60kW |
| Rated Frequency: | 50Hz/60Hz | Rated Voltage: | AC380V |
| Voltage Range: | AC380V±15% | Voltage Range （DC+/-）: | DC680V~ DC1000V |
| Current Range: | ±100A | Voltage Limiting: | Support |
| Current Limiting: | Support | Forward And Reverse Switching Time: | <10ms |
| Efficiency: | ≥97% | Mean Time Between Failure (MTBF): | ＞100000 Hours |
| Operating Temperature: | -20℃～+45℃（above +50℃ Power Derating） | Working Humidity: | ≤95%RH，no Condensation |
| Storage Temperature: | -40℃～+55℃ | Cooling Method: | Intelligent Forced Air Cooling |
| Altitude: | <3000m | Communication: | RS485，CAN, Ethernet, Dry Contact |
| Protection Level: | IP20 | Noise: | ＜70dB |
| Size (H*W*D): | 129*436*470mm | ||
Product Description

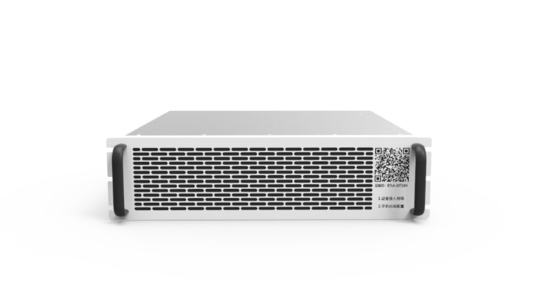

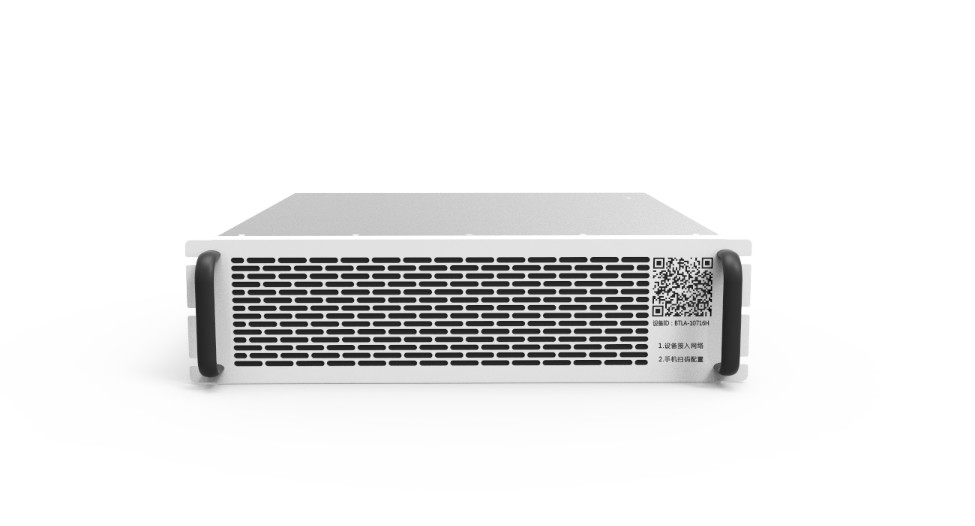

60 KW Bidirectional AC DC Power Module For Microgrid and Energy storage System.
ANE 60kW module is a bidirectional AC-DC module specially developed for battery test equipment and microgrid and energy storage system, AC-DC analog power supply, feedback electronic load, electric vehicle charge-discharge equipment and energy storage equipment, which adopts the latest optimized hardware design, advanced control algorithm and advanced manufacturing process. Compatible with almost all energy storage equipment charging and discharging requirements. This module has the advantages of ultra-wide constant power range, excellent low-voltage constant current capability, high weighted efficiency in full power range, large limit temperature working range, and minimal standby power consumption, etc. The system operation is safer, more reliable, more economical and more adaptable to the environment.
Features
- Modular design, easy to expand capacity;
- Intelligent grid-connected operation, bidirectional high power factor, bidirectional low harmonic current, can effectively improve the quality of the power grid;
- Set bidirectional DC power supply and feedback electronic load function characteristics in one, intelligent forward and backward operation, power and load seamless switch;
- Touch screen operation control, simple and intuitive;
- With off- grid/grid-connected switching function. High dynamic response, full load switching time as low as 10ms;
- With islanding protection (settable), intelligent forward and backward operation to improve system reliability;
- With multiple modes of constant voltage, constant current, constant resistance and constant power;
- With output programmable function, can simulate a variety of power supply and load characteristic curve;
- Wide output voltage range: 50Vdc ~ 950Vdc, high precision and fast dynamic response;
- The intelligent DSP design realizes the full digital control of the energy storage converter module and determines the high reliability of the control;
- Multiple safety protection, input over and under voltage protection, output anti-reverse connection protection, short circuit protection,over temperature protection, air duct abnormality detection, etc.
Technical parameter
All performance and parameters shall be subject to the latest confirmation of our technical department.
| Model | PMA060-A011-H | |
| AC side parameters | ||
| Rated voltage | AC380V | |
| Rated power | 60kW | |
| Voltage range | AC380V±15% | |
| Current range | ±92A | |
| Rated frequency | 50Hz/60Hz | |
| Power factor adjustable range | ±1 | |
| Harmonic content THDi | ≤3% | |
| DC side parameter | ||
| voltage range | DC680V~DC1000V | |
| Current range | ±100A | |
| Voltage error | ≤1% | |
| Stabilized voltage precision | ≤1% | |
| Current error | ≤1% | |
| Stabilized current precision | ≤1% | |
| Voltage limiting | Support | |
| Current limiting | Support | |
| Rated power | 60kW | |
| Basic characteristics | ||
| AC and DC starting capability | Support | |
| Forward and reverse switching time | <10ms | |
| Efficiency | ≥97% | |
| Overload capability | 1.1 times ≥ 10min, 1.2 times ≥ 1min | |
| Mean Time Between Failure (MTBF) | ＞100000 hours | |
| Operating temperature | -20℃～+45℃(above +45℃ power derating) | |
| Working humidity | ≤95%RH,no condensation | |
| storage temperature | -40℃～+55℃ | |
| Storage humidity | 0 ~ 95%RH | |
| Cooling method | Forced air cooling | |
| Altitude | 3000m | |
| Communication | RS485,CAN | |
| Reactive power compensation | Support | |
| Protection level | IP20 | |
| Noise | ＜70dB | |
| Weight | 26kg | |
| Size ( H*W*D ) 129*436*470mm | ||
All performance and parameters shall be subject to the latest confirmation of our technical department.
