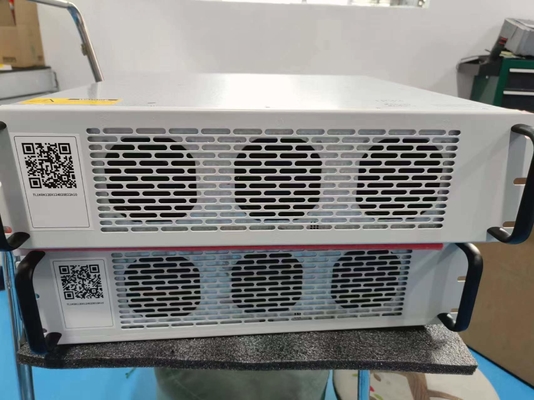

130 kW AC DC Bidirectional Converter Power Module For Microgrid And Energy Storage System
| Place of Origin: | China |
| Brand Name: | ANE |
| Model Number: | BTLA-PMA130-A011-HL |
| Minimum Order Quantity: | 5 |
| Price: | Exwork: 2,000~5,000 USD |
| Packaging Details: | Wooden Box |
| Delivery Time: | 45 Work days |
| Payment Terms: | T/T |
| Supply Ability: | 2000 Per month |
|
Detail Information |
|||
Product Description
130 kW Bidirectional AC / DC Power Module For Microgrid And Energy Storage System
Data sheet
| Model | BTLA-PMA130-A011-HL |
| AC side on-grid parameters | |
| Wiring system | Three phase five wire system |
| Rated voltage | AC380V |
| Rated power | 130kW |
| Voltage range | AC380V±15% |
| Rated current | 201A |
| Rated frequency | 50Hz/60Hz |
| Frequency range | 50/60Hz±5Hz |
| Power factor adjustment range | ±1 |
| Harmonic content THDi | ≤3% |
| AC side off-grid parameters | |
| Rated voltage | 380Vac |
| Voltage range | 380Vac±15% |
| Voltage accuracy | ≤1% |
| Output frequency | 50/60Hz±5Hz |
| DC side parameters | |
| voltage range | DC680V~DC1000V |
| Current range | ±194A |
| Voltage error | ≤1% |
| Stabilized voltage precision | ≤1% |
| Current error | ≤1% |
| Stabilized current precision | ≤1% |
| Voltage-limiting characteristic | Yes |
| Yes |
| Basic characteristics | |
| Off-grid/grid-connected switch | Built-in |
| AC and DC starting capability | Support |
| Forward and reverse switching time | <10ms |
| Peak efficiency | 98.6% |
| Overload capability | 1.1 times ≥ 10min, 1.2 times ≥ 1min |
| Off-grid/grid-connected switching time | <10ms |
| Operating temperature | -20℃～+45℃(above +45℃ power derating) |
| Working humidity | ≤95%RH,no condensation |
| storage temperature | -40℃～+55℃ |
| Storage humidity | 0 ~ 95%RH |
| Cooling method | Intelligent forced air cooling |
| Altitude | 3000m |
| Communication | RS485,CAN, Ethernet, Dry Contact |
| Island protection | Support |
| Protective characteristic | Multiple safety protection, AC and DC over and under voltage protection, over current protection, short circuit protection, DC reverse protection, AC phase sequence protection, over temperature protection, fan abnormal detection, etc. |
| Protection level | IP20 |
| Noise | ＜70dB |
| Weight | 36kg |
| Size ( H*W*D ) 129*443*500mm | |
All performance and parameters shall be subject to the latest of our technical department.
Product introduction
This energy storage AC/DC bidirectional converter adopts modular design, advanced control algorithm to realize multi-machine parallel and has reactive power compensation function. The power level of the parallel system covers 130kW ~ 1.3MW. The series of products have both local monitoring and EMS system remote scheduling functions, with excellent load adaptability and power grid adaptability, at the same time, independent air duct design makes it can effectively cope with a variety of complex application environment, the system is safer, reliable, economic, environmental adaptability.
Features
High efficiency
- PF value is ±1 on AC side, improve load capacity
- Our patent technology was adopted to realize energy bi-directional flow
- Seamless forward and reverse switching
- High dynamic response, full load switch time as low as 10 ms
- Output of wide voltage range, high precision, fast dynamic response
Safety
- High reliable protection performance, resistance to high and low temperature,humidity, salt spray and other harsh environment
- The staggered parallel technology, reduce the ripple current
- Multiple security protection, input over/under-voltage protection, Output anti-reverse connection, short circuit protection, over temperature protection, fan anomaly detection, etc
- Low standby loss
- Multi-dimensional intelligent fan control technology, reducing power consumption and noise
- DSP design and realize the full digital control
- Can directly interact with the battery BMS
- External interface is rich, cooperating with isolation transformer access
Convenient
- Modular design, easy to maintain, and support parallel expansion
- High power density, small volume, light weight
- With on-grid/off-grid switch function(STS)
- Support module networking, mobile phone operation control, simple and intuitive
