120 kW AC DC Bidirectional Converter Power Module For Microgrid

Product Details
Place of Origin: China
Brand Name: ANE
Model Number: BTLA-PMA120-A011-HL
Payment & Shipping Terms
Minimum Order Quantity: 5
Price: Exwork: 4,000~7,000 USD
Packaging Details: Wooden Box
Delivery Time: 45 Work days
Payment Terms: T/T
Supply Ability: 2000 Per month

Detail Information

Place of Origin China Brand Name ANE
Model Number BTLA-PMA120-A011-HL Wiringm System: Three Phase Five Wire System
Rated Voltage: AC380V/400V Rated Power: 120kW
AC Voltage Range: AC380V±15% AC Current Range: ±183A
Rated Frequency: 50Hz/60Hz DC Voltage Range: DC680V~DC1000V
DC Current Range: ±176A Voltage Error: ≤1%
Current Error: ≤1% Off-grid/grid-connected Switch: Built-in
Forward And Reverse Switching Time: <10ms Off-grid/grid-connected Switching Time: <10ms
Peak Efficiency: 98.8% Overload Capability: 1.1 Times ≥ 10min, 1.2 Times ≥ 1min

Product Description

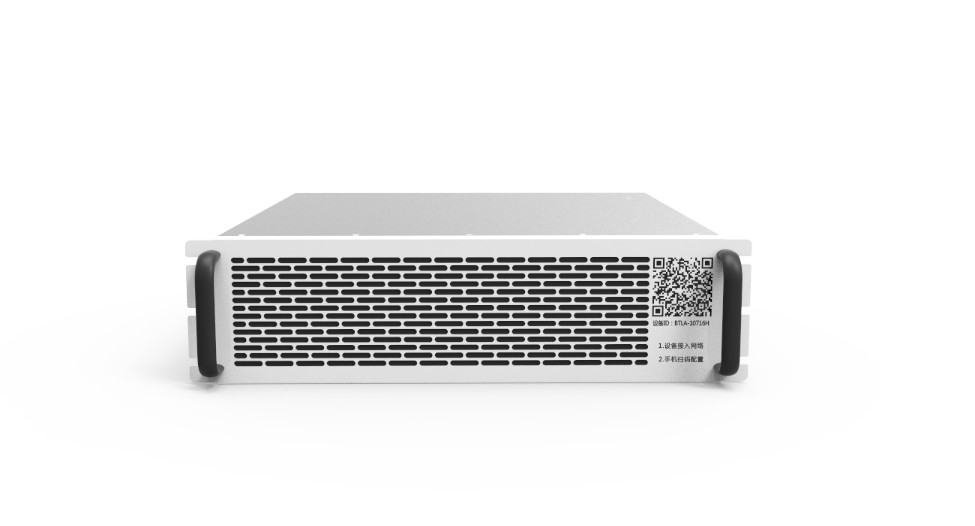

120 kW Bidirectional AC / DC Power Module For Microgrid And Energy Storage System

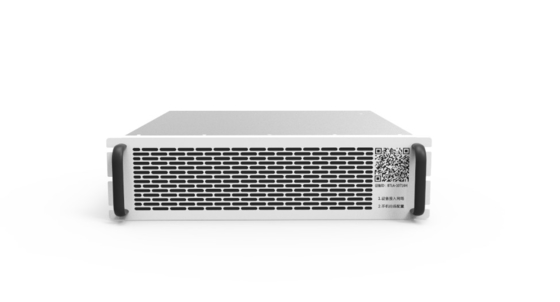

120 kW AC DC Bidirectional Converter Power Module For Microgrid 0
Product introduction



DC 176A DC680V~DC1000V Modular Design 120 kW Bidirectional AC / DC Converter For Microgrid And Energy Storage



This energy storage AC/DC bidirectional converter adopts modular design, advanced control algorithm to realize multi-machine parallel and has reactive power compensation function. The power level of the parallel system covers 120kW ~ 1.2MW. The series of products have both local monitoring and EMS system remote scheduling functions, with excellent load adaptability and power grid adaptability, at the same time, independent air duct design makes it can effectively cope with a variety of complex application environment, the system is safer, reliable, economic, environmental adaptability



Features

High efficiency

  •  PF value is ±1 on AC side, improve load capacity
  •  Our patent technology was adopted to realize energy bi-directional flow
  •  High dynamic response, full load switch time as low as 10 ms
  •  Output of wide voltage range, high precision, fast dynamic response

Safety

  • Wide working temperature range: - 20 ℃ ~ + 45 ℃
  • The staggered parallel technology, reduce the ripple current
  • Multiple security protection, input over/under-voltage protection, Output anti-reverse connection, short circuit protection, over temperature protection, fan anomaly detection, etc

Intelligence

  • Multi-dimensional intelligent fan control technology, reducing power consumption and noise
  • DSP design and realize the full digital control
  • Low standby loss
  • External interface is rich, cooperating with isolation transformer access

Convenient

  • Modular design, easy to maintain, and support parallel expansion
  • High power density, small volume, light weight
  • With on/off grid switch function

Technical parameter

120 KW Bidirectional AC / DC Converter Module

Model BTLA-PMA120-A011-HL
AC side on-grid parameters
Wiring system Three phase five wire system
Rated voltage AC380V
Rated power 120kW
Voltage range AC380V±15%
Current range 183A
Rated frequency 50Hz/60Hz
Frequency range 50/60Hz±5Hz
Power factor adjustment range ±1
Harmonic content THDi ≤3%
AC side off-grid parameters
Rated voltage 380Vac
Voltage range 380Vac±15%
Voltage accuracy ≤1%
Output frequency 50/60Hz±5Hz
THDu ≤2% line load
DC side parameters
voltage range DC680V~DC1000V
Current range ±176A
Voltage error ≤1%
Stabilized voltage precision ≤1%
Current error ≤1%
Stabilized current precision ≤1%
Basic characteristics
Off-grid/grid-connected switch Built-in
AC and DC starting capability Support
Forward and reverse switching time <10ms
Peak efficiency 98.6%
Overload capability 1.1 times ≥ 10min, 1.2 times ≥ 1min
Off-grid/grid-connected switching time <10ms
Operating temperature -20℃~+45℃(above +45℃ power derating)
Working humidity ≤95%RH,no condensation
storage temperature -40℃~+55℃
Storage humidity 0 ~ 95%RH
Cooling method Intelligent forced air cooling
Altitude 3000m
Communication RS485,CAN, Ethernet, Dry Contact
Island protection Support
Protective characteristic Multiple safety protection, AC and DC over and under voltage protection, over current protection, short circuit protection, DC reverse protection, AC phase sequence protection, over temperature protection, fan abnormal detection, etc.
Protection level IP20
Noise <70dB
Weight 40kg
Size ( H*W*D ) 129*443*500mm

All performance and parameters shall be subject to the latest confirmation of our technical department.
