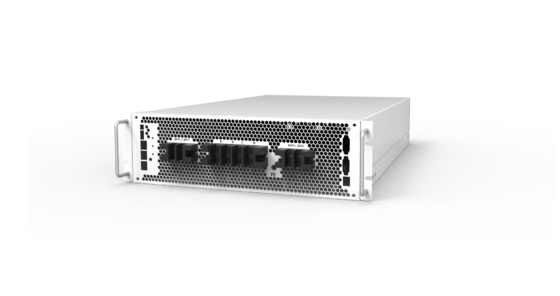

High Voltage Bidirectional AC DC Converter 62.5kW On-Grid And Off-Grid Type
| Place of Origin: | CHINA |
| Brand Name: | SINY |
| Model Number: | NESI-62.5KR1-1P |
| Minimum Order Quantity: | 1 |
| Price: | Exwork: 5,000~9,000 USD |
| Packaging Details: | Carton |
| Delivery Time: | 45 Work days |
| Payment Terms: | T/T, |
| Supply Ability: | 200 Per month |
|
Detail Information |
|||
| Place of Origin | CHINA | Brand Name | SINY |
|---|---|---|---|
| Model Number | NESI-62.5KR1-1P | Certification: | G99/CE/CQC |
| Power: | 62.5kW | Efficiency: | ≥98.2% |
| Standby Power Consumption: | <120W | Wiring: | 3L+PE |
| Operating Temperature: | -25℃ ~ +55℃(Power Derating Above +45℃) | Protection Level: | IP20 |
| Size (W*H*D): | 435*135*650 | Relative Humidity: | 0~95%，No Condensation |
| Communication Mode: | RS485、CAN、LAN | Noise: | ＜68dB |
| Weight: | 35kg | Output Harmonic: | 3%@ Linear Full Load |
| Dynamic Response: | 60ms@100% Linear Load | Unbalanced Load Capacity: | 100% |
| Overload Capacity: | Overload≤110%, Run ≥10min; Overload [110%~120%], Run ≥ 1min | ||
Product Description
62.5kW AC DC Bidirectional Converter On-grid and Off-grid Type for Energy Storage System
The 62.5KW group series energy storage converter is small in size and light in weight, and is suitable for grid-connected and off-grid applications. It can easily realize the parallel networking of multiple devices to form a small and medium-sized energy storage system, with strong adaptability of power grid and load. Excellent ease of use. A DC branch can be divided into a maximum of two branches for fine battery management
Features
- DC-side single-stage topology: 600 to 900V, maximum efficiency up to 98.2%.
- Can be used off-grid, with strong load adaptability, perfect for all types of load, including half wave load, impact load
- Perfect matching of power battery echelon utilization application scenarios
- Three level output, low harmonic, good power quality.
- 3U rack design, small size, easy to maintain.
Product specification
| Model |
NESI-62.5KR1-1P |
NESI-62.5KR1-2P |
|
|
DC side parameters |
Voltage range | DC600V～DC900V | |
| Rated power |
62.5kW |
||
| Maximum current |
116A |
||
| Number of DC channels | 1 | 2 | |
|
AC grid-connection parameters |
Grid type |
3L+PE |
|
| Rated power |
62.5kW |
||
| Rated voltage |
AC380V/400V |
||
| Rated current |
95A |
||
| Voltage range | -15%～+15% | ||
| Rated frequency |
50Hz/60Hz |
||
| Frequency range | Rated frequency±3Hz | ||
| Power factor |
-1~+1 |
||
| Output harmonic | ≤3% | ||
| wiring |
3L+PE |
||
| AC off-grid parameters | Rated power |
62.5kW |
| Rated voltage |
AC380V |
|
| Rated frequency |
50Hz/60Hz |
|
| Rated current |
95A |
|
| Voltage accuracy |
1% |
|
| Frequency accuracy |
0.2Hz |
|
| Output harmonic | 3%@ linear full load | |
| Dynamic response | 60ms@100% Linear load | |
| Unbalanced load capacity |
100% |
|
| Overload capacity | Overload≤110%, run ≥10min; Overload [110%~120%], run ≥ 1min | |
|
Environment |
Working temperature | -25℃～55℃(Derating when temperature is above 45 °C) |
| Storage temperature | -40℃～70℃(No battery) | |
| Relative humidity | 0％RH～95％RH,No condensation | |
| Working altitude | When the temperature is 45 °C, derating is not required for 2000m. Derating ranges from 2000m to 4000m | |
| Noise | ＜68dB | |
|
Communications and Management |
Communication interface | RS485,CAN,LAN |
| Communication protocol | CAN,ModBus TCP,ModBus RTU | |
| Installation | Rack type | |
| Highest efficiency |
98.2% |
|
|
EMC |
Class A |
|
| Isolation method | No isolation | |
| Protection grade |
IP20 |
|
| Cooling way | Air cooling, intelligent fan speed control | |
| Size (W*H*D) |
435*135*650mm |
|
| Weight |
35kg |
|
All performance and parameters shall be subject to the latest confirmation of our technical department
