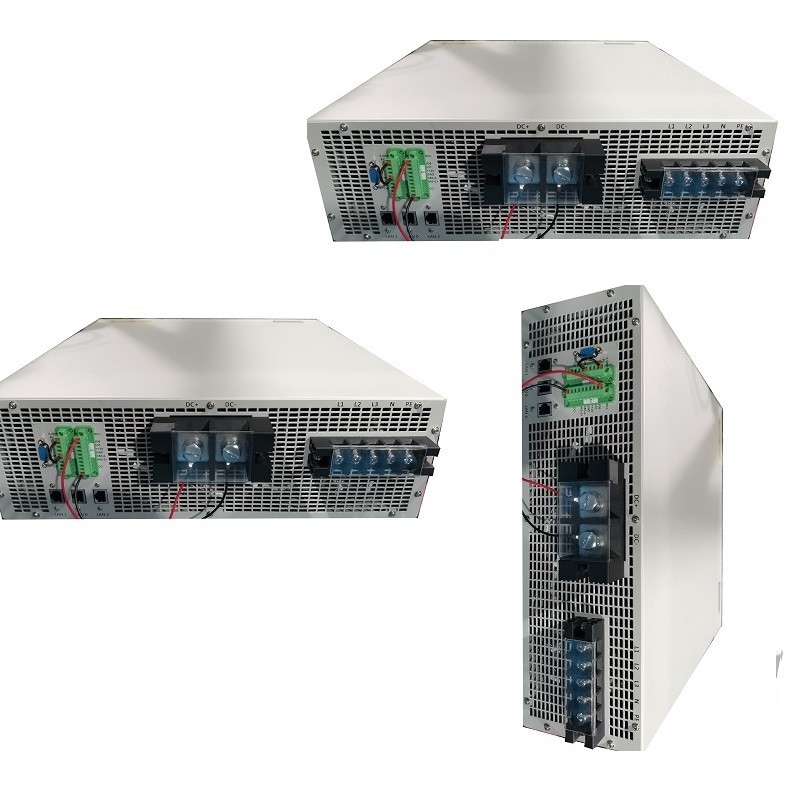

DPS 18kW High Power AC To DC Converter Bidirectional 10Vdc-450Vdc

Product Details
Place of Origin: China
Brand Name: ANE
Model Number: BTLA-MTS018-180M-01
Payment & Shipping Terms
Minimum Order Quantity: 10
Price: FOB: 5,000 USD~7,000 USD
Packaging Details: Carton
Delivery Time: 30 work days
Payment Terms: T/T, L/C
Supply Ability: 20000 Per month

Detail Information

Place of Origin China Brand Name ANE
Model Number BTLA-MTS018-180M-01 Voltage Range: 10Vdc~450Vdc
Rated Current: 180A Efficiency: ≥92%
Overload Capability: 1.1 Times ≥ 10min, 1.2 Times ≥ 1min Mean Time Between Failure (MTBF): >100000 Hours
Working Humidity: ≤95%RH,no Condensation Cooling Method: Intelligent Forced Air Cooling
Altitude: <3000m Communication: CAN,RS485,Ethernet,dry Contact
Protection Level: IP20

Product Description

DPS(18kW) 10Vdc-450Vdc High Frequency Isolated AC DC Bidirectional Converter Module For Battery Testing Equipment

The AC DC Bidirectional Converter has Two-way energy transfer, cross quadrant seamless switch, high output voltage range, high precision, fast dynamic response, High frequency isolation and higher safety.  Using the latest optimized hardware design, advanced control algorithm and advanced manufacturing process, the HF isolated bidirectional power supply is specially developed for lithium battery testing equipment, AC and DC analog power supply, feedback electronic load, EV charging and discharging equipment and energy storage equipment.



  • Multiple safety protection, input over-voltage/under-voltage protection, output anti-reverse connection, short circuit protection, over-temperature protection, abnormal detection of wind duct, etc;
  • Modular design, easy maintenance, support parallel capacity expansion;
  • Wide temperature -20℃~45℃;
  • Possesses intelligent forward and backward operation,seamless switching functions,meet the occasion of two-way energy transformation
  • High frequency isolation function, higher security
  • Equipped with on-grid/off-grid switching function, switching time is not more than 10ms

Technical parameter

AC side parameters

  • Rated Input Power
wiring   Three-phase five wire system
voltage range   380Vac±15%
Rated frequency and range 45~65Hz(Adaptive 50/60Hz power grid)
Power factor adjustment range ±1
THDi ≤5%

DC side parameters

  • Rated voltage
  • Rated current
Voltage range   10Vdc-450Vdc
Current range   ±180A
Voltage accuracy 0.1% F.S
  • Current accuracy
0.1% F.S
Voltage limiting Yes
  • Current limiting

Basic Characteristics

AC/DC starting function Yes
Switching time forward and backward ≤10ms
  • Peak efficiency
H*W*D 131*465*510mm
  • Weight(kg)

Environmental Conditions

  • Operating Temperature Range
°C -20℃~+45℃
  • Working humidity range
%RH <+95 Relative humidity, non-condensing
Storage temperature °C -40 ~ +55
  • Storage humidity
%RH 0 ~ +95 Relative humidity, non-condensing
  • Cooling mode
  • Force-air cooling
  • Altitude
m 3000
  • Protection grade
- IP20
  • Noise
dB <70


Communication mode -
  • CAN,RS485,Ethernet,dry contact
Report signal - Various protection signals, voltage and current signals
Receipt signal - On off signal
