Wide Range High Voltage AC To DC Converter Bidirectional Module

Product Details
Place of Origin: China
Brand Name: ANE
Model Number: BTLA-MTS018-180M-01
Payment & Shipping Terms
Minimum Order Quantity: 10
Price: FOB: 5,000 USD~7,000 USD
Packaging Details: Carton
Delivery Time: 30 work days
Payment Terms: T/T, L/C
Supply Ability: 20000 Per month

Detail Information

Place of Origin China Brand Name ANE
Model Number BTLA-MTS018-180M-01 Isolation Transformer: Support
AC And DC Starting Capability: Support Voltage Range: 10Vdc~450Vdc
Rated Current: 180A Forward And Reverse Switching Time: <10ms
Efficiency: ≥92% Overload Capability: 1.1 Times ≥ 10min, 1.2 Times ≥ 1min
Mean Time Between Failure (MTBF): >100000 Hours Operating Temperature: -20℃~+45℃
Working Humidity: ≤95%RH,no Condensation Storage Temperature: -40℃~+70℃
Cooling Method: Intelligent Forced Air Cooling Altitude: <3000m
Communication: CAN,RS485,Ethernet,dry Contact Reactive Power Compensation: Support
Protection Level: IP20

Product Description

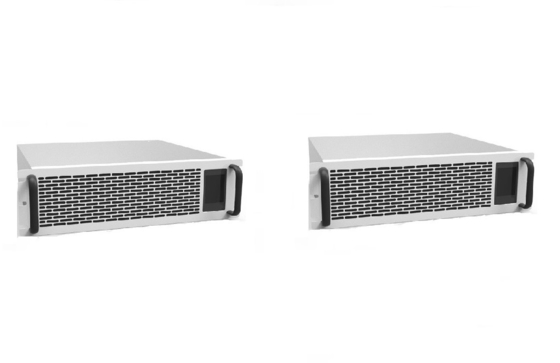

DPS(18kW) 10Vdc-450Vdc High Frequency Isolated AC DC Bidirectional Converter Module For Battery Testing Equipment


Intelligent forward and backward operation can meet bidirectional energy transformation. High frequency isolation, with a higher security. At the same time, the Bidirectional Converter Module equipped with on-grid/off-grid switching function, and the switching time will be less than 10ms, which applied in more occasions. Latest optimized hardware design, advanced control algorithm and advanced manufacturing process, the HF isolated bidirectional power supply is specially developed for lithium battery testing equipment, AC and DC analog power supply, feedback electronic load, EV charging and discharging equipment and energy storage equipment.

Technical parameter

AC side parameters

  • Rated Input Power
wiring   Three-phase five wire system
voltage range   380Vac±15%
Rated frequency and range 45~65Hz(Adaptive 50/60Hz power grid)
Power factor adjustment range ±1
THDi ≤5%

DC side parameters

  • Rated voltage
  • Rated current
Voltage range   10Vdc-450Vdc
Current range   ±180A
Voltage accuracy 0.1% F.S
  • Current accuracy
0.1% F.S
Voltage limiting Yes
  • Current limiting

Basic Characteristics

AC/DC starting function Yes
Switching time forward and backward ≤10ms
  • Peak efficiency
H*W*D 131*465*510mm
  • Weight(kg)

Environmental Conditions

  • Operating Temperature Range
°C -20℃~+45℃
  • Working humidity range
%RH <+95 Relative humidity, non-condensing
Storage temperature °C -40 ~ +55
  • Storage humidity
%RH 0 ~ +95 Relative humidity, non-condensing
  • Cooling mode
  • Force-air cooling
  • Altitude
m 3000
  • Protection grade
- IP20
  • Noise
dB <70


Communication mode -
  • CAN,RS485,Ethernet,dry contact
Report signal - Various protection signals, voltage and current signals
Receipt signal - On off signal



  • Two-way energy transfer, cross quadrant seamless switch;
  • High output voltage range, high precision, fast dynamic response;
  • High frequency isolation, higher safety;
  • Multiple safety protection, input over-voltage/under-voltage protection, output anti-reverse connection, short circuit protection, over-temperature protection, abnormal detection of wind duct, etc;
  • Modular design, easy maintenance, support parallel capacity expansion;
  • Wide temperature -20℃~45℃;
  • Equipped with on-grid/off-grid switching function;
