95%RH AC DC Bidirectional Converter 50VDC-950VDC For Energy storage System
| Place of Origin: | China |
| Brand Name: | ANE |
| Model Number: | PMA015-A011-HI |
| Minimum Order Quantity: | 10 |
| Price: | FOB: 1,000 USD~5,000 USD |
| Packaging Details: | Carton |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20000 Per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | ANE |
|---|---|---|---|
| Model Number | PMA015-A011-HI | Isolation Transformer: | Support |
| AC And DC Starting Capability: | Support | Forward And Reverse Switching Time: | <10ms |
| Efficiency: | ≥93.5% | Overload Capability: | 1.1 Times ≥ 10min, 1.2 Times ≥ 1min |
| Mean Time Between Failure (MTBF): | ＞100000 Hours | Operating Temperature: | -20℃～+45℃（above +50℃ Power Derating） |
| Working Humidity: | ≤95%RH，no Condensation | Storage Temperature: | -40℃～+55℃ |
| Cooling Method: | Intelligent Forced Air Cooling | Altitude: | <3000m |
| Communication: | RS485，CAN, Ethernet, Dry Contact | Protection Level: | IP20 |
| Noise: | ＜70dB | Size (W*D*H) 430mm*500mm*130mm: | 436mm*420mm*85mm |
Product Description

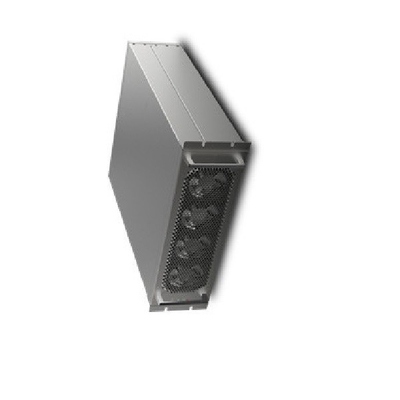

15 KW AC DC Isolated Bidirectional Power Module For Microgrid and Energy storage System.
15kW bidirectional AC DC module is compatible with almost all energy storage equipment charging and discharging requirements. Our AC DC Bidirectional Power Module has ultra-wide constant power range, excellent low-voltage constant current capability, high weighted efficiency in full power range, large limit temperature working range, and minimal standby power consumption, etc. The system operation is safer, more reliable, more economical and more adaptable to the environment.a bidirectional AC To DC module which developed for battery test equipment and microgrid and energy storage system, AC-DC analog power supply, feedback electronic load, electric vehicle charge-discharge equipment and energy storage equipment, which adopts the latest optimized hardware design, advanced control algorithm and advanced manufacturing process.
Features
Intelligent grid-connected operation, bidirectional high power factor, bidirectional low harmonic current, can effectively improve the quality of the power grid; Set bidirectional DC power supply and feedback electronic load function characteristics in one, intelligent forward and backward operation, power and load seamless switch; Off- grid/grid-connected switching function. High dynamic response, full load switching time as low as 10ms; Islanding protection (settable), intelligent forward and backward operation to improve system reliability; Multiple modes of constant voltage, constant current, constant resistance and constant power; With output programmable function, can simulate a variety of power supply and load characteristic curve; Modular design, easy to expand capacity
Technical parameter
AC side parameter
| Model | PMA015-A011-HI |
| Wiring | TN-S |
| Rated Voltage | 380Vac |
| Voltage range | 380Vac±15% |
| frequency range | 45～65Hz |
| PF | 0.99 |
| THDi | ≤3% |
| Rated frequency and range | 45～65Hz |
| THDi | ≤3% |
| AC/DC starting function | Support |
| Switching time forward and backward | ≤10ms |
| Peak Efficiency | ≥93.5% |
DC side parameter
| Model | PMA015-A011-HI |
| Rated value | 300Vdc/50A |
| Rated power | 15kW |
| Current range | ±50A |
| Current accuracy | 0.1% F.S/0.05% F.S |
| Voltage range | 50～950Vdc |
| Voltage accuracy | 0.1% F.S/0.05% F.S |
Environmental conditions
| Operating temperature range | °C | -20℃~45℃ | |
|
Working humidity range |
%RH | <+95 | Relative humidity, non-condensing |
| Storage temperature | °C | -40 ~ +55 | |
| Storage Humidity | %RH | 0 ~ +95 | Relative humidity, non-condensing |
| Cooling mode | - |
Air Cooling |
|
| Altitude | m | 3000 | / |
| IP grade | - | IP20 | |
| Noise | - | ≤70dB |
Communicating function
| Communication mode | - | CAN,RS485,Ethernet,Dry Contact. | |
| Report the signal | - | Various protection signals, voltage and current signals. | |
| Receipt signal | - | On off signal. |
