NESI-105 KW AC To DC Bidirectional Converter On-Grid And Off-Grid Type
| Place of Origin: | China |
| Brand Name: | SINY Energy |
| Certification: | CE,G59 |
| Model Number: | NESI-105KR1-1P |
| Minimum Order Quantity: | 5 |
| Price: | Exwork: 6,000~9,000 USD |
| Packaging Details: | Wooden box |
| Delivery Time: | 45 Work days |
| Payment Terms: | T/T |
| Supply Ability: | 200 Per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | SINY Energy |
|---|---|---|---|
| Certification | CE,G59 | Model Number | NESI-105KR1-1P |
| Rated Power: | 105kW | Voltage Range: | DC600V~DC900V |
| Maximum Current: | 175A | Grid Type: | 3L+PE |
| Rated Voltage: | AC380V/400V | Rated Current: | 159A |
| Rated Frequency: | 50Hz/60Hz | Power Factor: | -1~+1 |
| Dynamic Response: | 60ms@100% Linear Load | Unbalanced Load Capacity: | 100% |
| Overload Capacity: | Overload≤110%, Run ≥10min; Overload [110%~120%], Run ≥ 1min | Maximum Efficiency: | 98.2% |
Product Description
NESI-105 KW AC to DC Bidirectional Converter On-grid and Off-grid Type for Energy Storage System
Product Overview
The 105kW on-grid and off-grid group series type energy storage converter is a single branch standard rack type product. It can be used in a variety of grid-connected and off-grid application scenarios, such as emergency power backup, mobile energy storage, transformer capacity expansion in platform area, peak-load shifting, or dynamic capacity increase, etc. At the same time, it can rapidly expand capacity according to user requirements, and conveniently realize the parallel networking of multiple devices to form a small and medium-sized energy storage system. Can be used independently off-grid, with strong load applicability; the power grid has strong adaptability and excellent usability; Easy integration, single module and a cluster of conventional standard batteries on the market to form a standardized 0.5C energy storage system, to achieve fine management of batteries.
Features

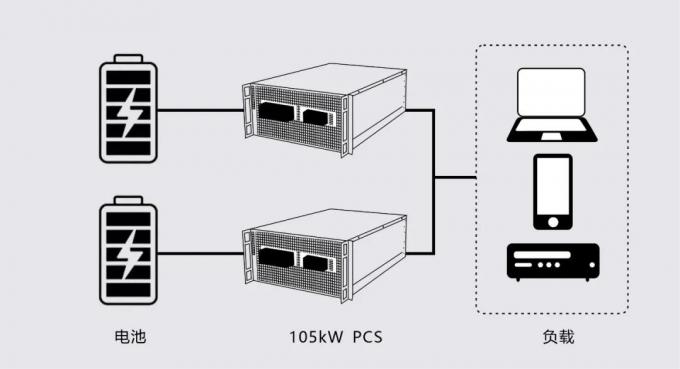

Convenient multi-equipment grid connection; The multi-branch high-power energy storage system can be formed by multiple PCS in parallel.

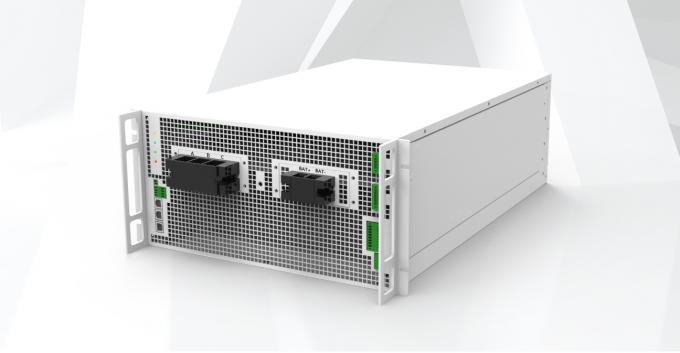

The standard rack design can be perfectly combined with the lithium battery cabinet to form a distributed energy storage cabinet.
High power density, small size, easy handling, two people can be installed by hand
Three level design, low harmonics, good power quality.
Can be off-grid use, independent inverter for load.
Product specification
| Model | NESI-105KR1-1P | |
|
DC side parameters |
Voltage range | DC600V~DC900V |
| Rated power | 105kW | |
| Maximum current | 175A | |
| Number of DC channels | 1 | |
|
AC grid-connection parameters |
Grid type | 3L+PE |
| Rated power | 105kW | |
| Rated voltage | AC380V/400V | |
| Rated current | 159A | |
| Voltage range | -15% ~ +15% | |
| Rated frequency | 50Hz/60Hz | |
| Frequency range | Rated frequency±3Hz | |
| Power factor | -1~+1 | |
| Output harmonic | ≤ 3% | |
|
|
wiring | 3L+PE |
| Rated power | 105kW | |
| AC off-grid parameters | Rated voltage | AC380V/400V |
| Rated frequency | 50Hz/60Hz | |
| Maximum current | 159A | |
| Output harmonic | 3%@ linear full load | |
| Dynamic response | 60ms@100% Linear load | |
| Unbalanced load capacity | 100% | |
| Overload capacity | Overload≤110%, run ≥10min; Overload [110%~120%], run ≥ 1min | |
|
System parameter |
Rated frequency | 50Hz/60Hz |
| Frequency accuracy | ±0.1HZ | |
| Voltage accuracy | 1% | |
| Voltage range | -15% ~ +15% | |
| Maximum efficiency | 98.2% | |
| Grid-connected and off-grid switching | Manual | |
|
|
Working temperature | -25℃～55℃(Derating when temperature is above 45 °C) |
| Storage temperature | -40℃～70℃(No battery) | |
| Relative humidity | 5％RH ~ 95％ RH ,No condensation | |
| Working altitude | When the temperature is 45 °C, derating is not required for 2000m. Derating ranges from 2000m to 4000m | |
| Noise | ＜68dB | |
|
Communications and |
Communication interface | RS485,CAN, LAN, REPO, ETHERNET |
| Communication protocol | CAN, ModBus TCP, ModBus RTU | |
| Installation | Rack type | |
| Highest efficiency | 97.1% | |
|
EMC |
Class A | |
| Certification | CE,G59,CQC,TUV mark | |
| Isolation method | No isolation | |
| Protection grade | IP20 | |
| Cooling way | Air cooling, intelligent fan speed control | |
| Size (W*H*D) | 483*220*728mm | |
