12 kW AC DC Bidirectional Converter High Frequency Isolated 200A 2.5Vdc-100Vdc

Product Details
Place of Origin: China
Brand Name: ANE
Model Number: BTLA-MTS012-200L-01
Payment & Shipping Terms
Minimum Order Quantity: 10
Price: Exwork: 3,000~6,000 USD
Packaging Details: Carton
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: 2000 units per month

Detail Information

Place of Origin China Brand Name ANE
Model Number BTLA-MTS012-200L-01 Efficiency: ≥ 92%
Humidity: <95% RH Frequency: 50/60Hz
AC Voltage: 220Vac±15% Operating Temperature: -20℃~+45℃
Output Power: 12kW Protection: Overload, Overvoltage, Short Circuit
Wiring: Single-phase Three Wire System Weight: 22kg
DC Voltage Range: 2.5Vdc-100Vdc DC Current Range: ±200A

Product Description

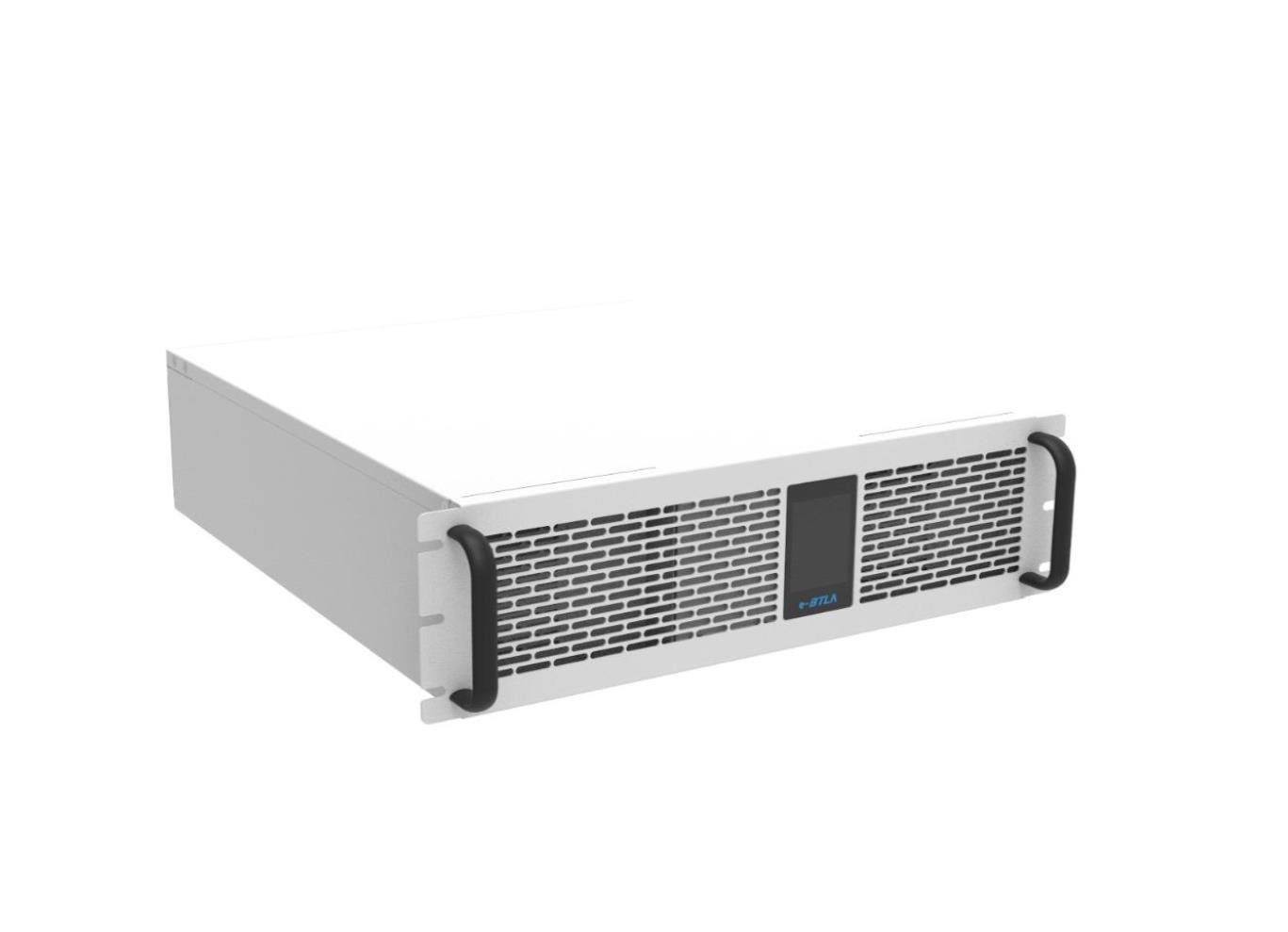

12 kW High Frequency Isolated AC/DC Bidirectional Power Module



Product Introduction

12 kW 200A 2.5Vdc-100Vdc High Frequency Isolated AC/DC Bidirectional Power Module

BTLA-MTS series bidirectional power supply equipment, is for three electric system (battery, motor, electronic control) and fuel cell vehicle, pile and high-power AC/DC test development of professional equipment. The full digital design ensures the accuracy and effectiveness of the control, and has the characteristics of stable output and rapid response. It is used in charge and discharge test of various types of batteries (lithium battery, power battery pack, energy storage battery), R&D and production of electric vehicles such as electric drive, on-board AC/DC, DC/DC, as well R&D and production of AC/DC charging pile, etc.



Features

  • Two-way energy transfer, cross quadrant seamless switch;
  • High output voltage range, high precision, fast dynamic response;
  • High frequency isolation, higher safety;
  • Multiple safety protection, input over-voltage/under-voltage protection, output anti-reverse connection, short circuit protection, over-temperature protection, abnormal detection of wind duct, etc;
  • Modular design, easy maintenance, support parallel capacity expansion;
  • Wide operating temperature range: -20℃ ~ 45℃;
  • Equipped with on-grid/off-grid switching function;
  • Soft switch design, low loss, high efficiency;
  • DSP design, realize full digital control;
  • Both local operation and remote operation functions;
  • Rich external interface;
  • Strict system thermal design, low temperature rise, long life;
  • Touch screen operation control, simple and intuitive.

Technical Parameter

AC side parameters

  BTLA-MTS012-200L-01
  • Rated Input Power
12kW
wiring Single-phase three wire system
voltage range 220Vac±15%
Rated frequency and range 45~65Hz(Adaptive 50/60Hz power grid)
Power factor adjustment range ±1
THDi ≤5%


DC side parameters

  BTLA-MTS012-200L-01
  • Rated voltage
60Vdc
  • Rated current
200A
Voltage range 2.5Vdc-100Vdc
Current range ±200A
Voltage accuracy 0.1% F.S
  • Current accuracy
0.1% F.S
Voltage limiting Yes
  • Current limiting
Yes


Basic Characteristics

  Description
AC/DC starting function Yes
Forward and backward switching time ≤10ms
Off-grid/grid-connected switching time ≤10ms
  • Peak efficiency
92%
H*W*D 131*436*540mm
  • Weight(kg)
22kg


Environmental Conditions

  • Operating Temperature Range
°C -20℃~+45℃
  • Working humidity range
%RH <+95 Relative humidity, non-condensing
Storage temperature °C -40 ~ +55
  • Storage humidity
%RH 0 ~ +95 Relative humidity, non-condensing
  • Cooling mode
-
  • Force-air cooling

  • Altitude
m 3000
  • Protection grade
- IP20
  • Noise
dB <70


Communication

Communication mode -
  • CAN,RS485,Ethernet,dry contact

Report signal - Various protection signals, voltage and current signals
Receipt signal - On off signal


All performance and parameters shall be subject to the latest confirmation of our technical department.
