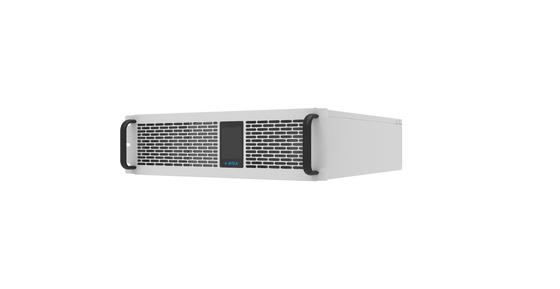

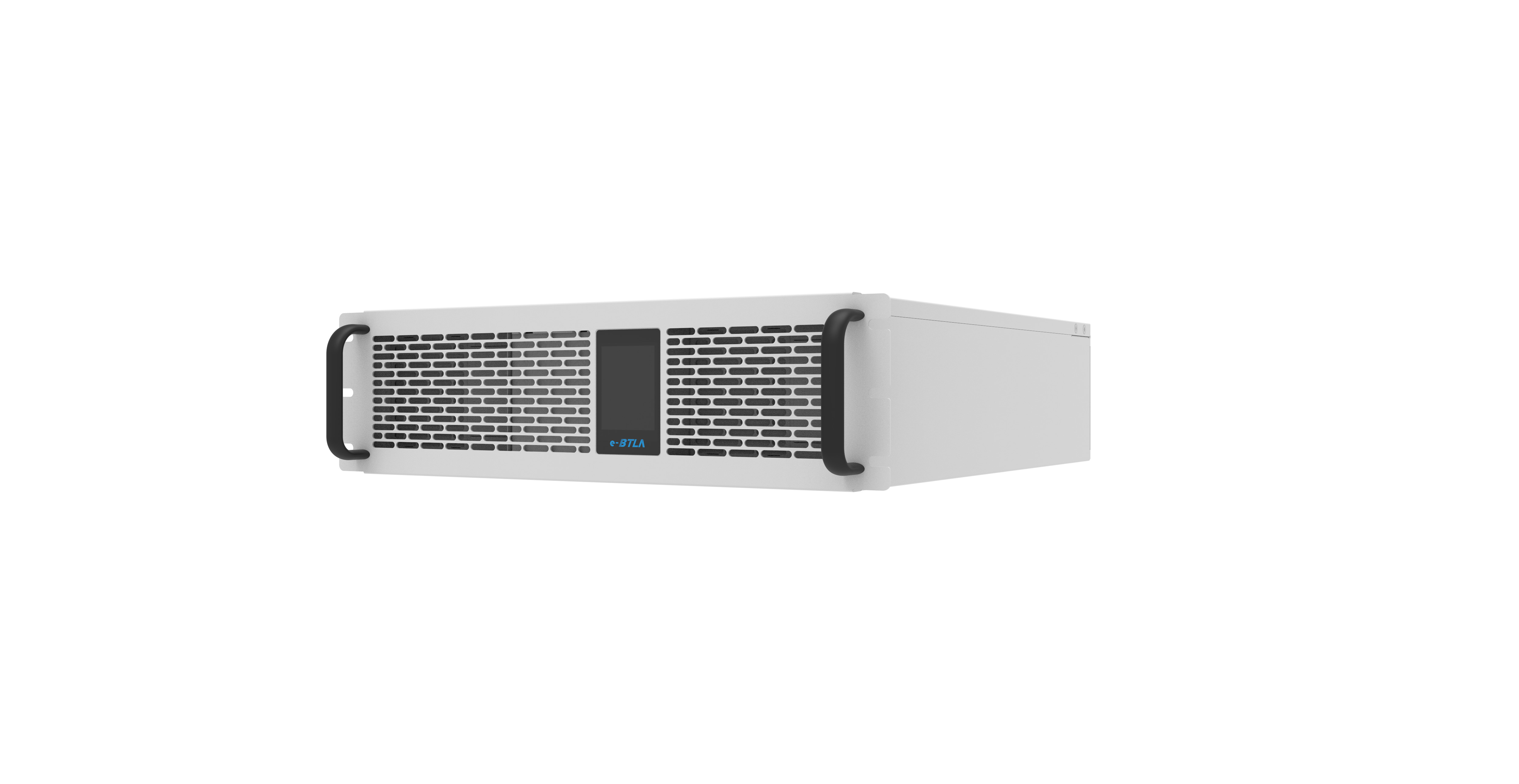

12 kW High Frequency Isolated AC/DC Bidirectional Power Module
Product Introduction
12 kW 120A 10Vdc-450Vdc High Frequency Isolated AC/DC Bidirectional Power Module
BTLA-MTS series bidirectional power supply equipment, is for three electric system (battery, motor, electronic control) and fuel cell vehicle, pile and high-power AC/DC test development of professional equipment. The full digital design ensures the accuracy and effectiveness of the control, and has the characteristics of stable output and rapid response. It is used in charge and discharge test of various types of batteries (lithium battery, power battery pack, energy storage battery), R&D and production of electric vehicles such as electric drive, on-board AC/DC, DC/DC, as well R&D and production of AC/DC charging pile, etc.
Features
- Two-way energy transfer, cross quadrant seamless switch;
- High output voltage range, high precision, fast dynamic response;
- High frequency isolation, higher safety;
- Multiple safety protection, input over-voltage/under-voltage protection, output anti-reverse connection, short circuit protection, over-temperature protection, abnormal detection of wind duct, etc;
- Modular design, easy maintenance, support parallel capacity expansion;
- Wide operating temperature range: -20℃ ~ 45℃;
- Equipped with on-grid/off-grid switching function;
- Soft switch design, low loss, high efficiency;
- DSP design, realize full digital control;
- Both local operation and remote operation functions;
- Rich external interface;
- Strict system thermal design, low temperature rise, long life;
- Touch screen operation control, simple and intuitive.
Technical Parameter
AC side parameters
| |
|
BTLA-MTS012-120M-01 |
|
|
12kW |
|
| wiring |
Single-phase three wire system |
|
| voltage range |
220Vac±15% |
|
| Rated frequency and range |
45～65Hz(Adaptive 50/60Hz power grid) |
| Power factor adjustment range |
±1 |
| THDi |
≤5% |
DC side parameters
Basic Characteristics
| |
Description |
| AC/DC starting function |
Yes |
| Forward and backward switching time |
≤10ms |
| Off-grid/grid-connected switching time |
≤10ms |
|
|
92% |
| H*W*D |
131*436*540mm |
|
|
22kg |
Environmental Conditions
- Operating Temperature Range
|
°C |
-20℃~+45℃ |
|
|
|
%RH |
<+95 |
Relative humidity, non-condensing |
| Storage temperature |
°C |
-40 ~ +55 |
|
|
|
%RH |
0 ~ +95 |
Relative humidity, non-condensing |
|
|
- |
|
|
|
|
m |
3000 |
|
|
|
- |
IP20 |
|
|
|
dB |
＜70 |
|
Communication
| Communication mode |
- |
- CAN,RS485,Ethernet,dry contact
|
|
| Report signal |
- |
Various protection signals, voltage and current signals |
|
| Receipt signal |
- |
On off signal |
|
All performance and parameters shall be subject to the latest confirmation of our technical department.
